| #include <opencv2/imgproc/imgproc_c.h>
#include <opencv2/legacy/legacy.hpp>
#include "opencv2/highgui/highgui.hpp"
#include <stdio.h>
static void help( void )
{
printf("\nThis program demostrates iterative construction of\n"
"delaunay triangulation and voronoi tesselation.\n"
"It draws a random set of points in an image and then delaunay triangulates them.\n"
"Usage: \n"
"./delaunay \n"
"\nThis program builds the traingulation interactively, you may stop this process by\n"
"hitting any key.\n");
}
static CvSubdiv2D* init_delaunay( CvMemStorage* storage,
CvRect rect )
{
CvSubdiv2D* subdiv;
subdiv = cvCreateSubdiv2D( CV_SEQ_KIND_SUBDIV2D, sizeof(*subdiv),
sizeof(CvSubdiv2DPoint),
sizeof(CvQuadEdge2D),
storage );
cvInitSubdivDelaunay2D( subdiv, rect );
return subdiv;
}
static void draw_subdiv_point( IplImage* img, CvPoint2D32f fp, CvScalar color )
{
cvCircle( img, cvPoint(cvRound(fp.x), cvRound(fp.y)), 3, color, CV_FILLED, 8, 0 );
}
static void draw_subdiv_edge( IplImage* img, CvSubdiv2DEdge edge, CvScalar color )
{
CvSubdiv2DPoint* org_pt;
CvSubdiv2DPoint* dst_pt;
CvPoint2D32f org;
CvPoint2D32f dst;
CvPoint iorg, idst;
org_pt = cvSubdiv2DEdgeOrg(edge);
dst_pt = cvSubdiv2DEdgeDst(edge);
if( org_pt && dst_pt )
{
org = org_pt->pt;
dst = dst_pt->pt;
iorg = cvPoint( cvRound( org.x ), cvRound( org.y ));
idst = cvPoint( cvRound( dst.x ), cvRound( dst.y ));
cvLine( img, iorg, idst, color, 1, CV_AA, 0 );
}
}
static void draw_subdiv( IplImage* img, CvSubdiv2D* subdiv,
CvScalar delaunay_color, CvScalar voronoi_color )
{
CvSeqReader reader;
int i, total = subdiv->edges->total;
int elem_size = subdiv->edges->elem_size;
cvStartReadSeq( (CvSeq*)(subdiv->edges), &reader, 0 );
for( i = 0; i < total; i++ )
{
CvQuadEdge2D* edge = (CvQuadEdge2D*)(reader.ptr);
if( CV_IS_SET_ELEM( edge ))
{
draw_subdiv_edge( img, (CvSubdiv2DEdge)edge + 1, voronoi_color );
draw_subdiv_edge( img, (CvSubdiv2DEdge)edge, delaunay_color );
}
CV_NEXT_SEQ_ELEM( elem_size, reader );
}
}
static void locate_point( CvSubdiv2D* subdiv, CvPoint2D32f fp, IplImage* img,
CvScalar active_color )
{
CvSubdiv2DEdge e;
CvSubdiv2DEdge e0 = 0;
CvSubdiv2DPoint* p = 0;
cvSubdiv2DLocate( subdiv, fp, &e0, &p );
if( e0 )
{
e = e0;
do
{
draw_subdiv_edge( img, e, active_color );
e = cvSubdiv2DGetEdge(e,CV_NEXT_AROUND_LEFT);
}
while( e != e0 );
}
draw_subdiv_point( img, fp, active_color );
}
static void draw_subdiv_facet( IplImage* img, CvSubdiv2DEdge edge )
{
CvSubdiv2DEdge t = edge;
int i, count = 0;
CvPoint* buf = 0;
// count number of edges in facet
do
{
count++;
t = cvSubdiv2DGetEdge( t, CV_NEXT_AROUND_LEFT );
} while (t != edge );
buf = (CvPoint*)malloc( count * sizeof(buf[0]));
// gather points
t = edge;
for( i = 0; i < count; i++ )
{
CvSubdiv2DPoint* pt = cvSubdiv2DEdgeOrg( t );
if( !pt ) break;
buf[i] = cvPoint( cvRound(pt->pt.x), cvRound(pt->pt.y));
t = cvSubdiv2DGetEdge( t, CV_NEXT_AROUND_LEFT );
}
if( i == count )
{
CvSubdiv2DPoint* pt = cvSubdiv2DEdgeDst( cvSubdiv2DRotateEdge( edge, 1 ));
cvFillConvexPoly( img, buf, count, CV_RGB(rand()&255,rand()&255,rand()&255), CV_AA, 0 );
cvPolyLine( img, &buf, &count, 1, 1, CV_RGB(0,0,0), 1, CV_AA, 0);
draw_subdiv_point( img, pt->pt, CV_RGB(0,0,0));
}
free( buf );
}
static void paint_voronoi( CvSubdiv2D* subdiv, IplImage* img )
{
CvSeqReader reader;
int i, total = subdiv->edges->total;
int elem_size = subdiv->edges->elem_size;
cvCalcSubdivVoronoi2D( subdiv );
cvStartReadSeq( (CvSeq*)(subdiv->edges), &reader, 0 );
for( i = 0; i < total; i++ )
{
CvQuadEdge2D* edge = (CvQuadEdge2D*)(reader.ptr);
if( CV_IS_SET_ELEM( edge ))
{
CvSubdiv2DEdge e = (CvSubdiv2DEdge)edge;
// left
draw_subdiv_facet( img, cvSubdiv2DRotateEdge( e, 1 ));
// right
draw_subdiv_facet( img, cvSubdiv2DRotateEdge( e, 3 ));
}
CV_NEXT_SEQ_ELEM( elem_size, reader );
}
}
static void run(void)
{
char win[] = "source";
int i;
CvRect rect = { 0, 0, 600, 600 };
CvMemStorage* storage;
CvSubdiv2D* subdiv;
IplImage* img;
CvScalar active_facet_color, delaunay_color, voronoi_color, bkgnd_color;
active_facet_color = CV_RGB( 255, 0, 0 );
delaunay_color = CV_RGB( 0,0,0);
voronoi_color = CV_RGB(0, 180, 0);
bkgnd_color = CV_RGB(255,255,255);
img = cvCreateImage( cvSize(rect.width,rect.height), 8, 3 );
cvSet( img, bkgnd_color, 0 );

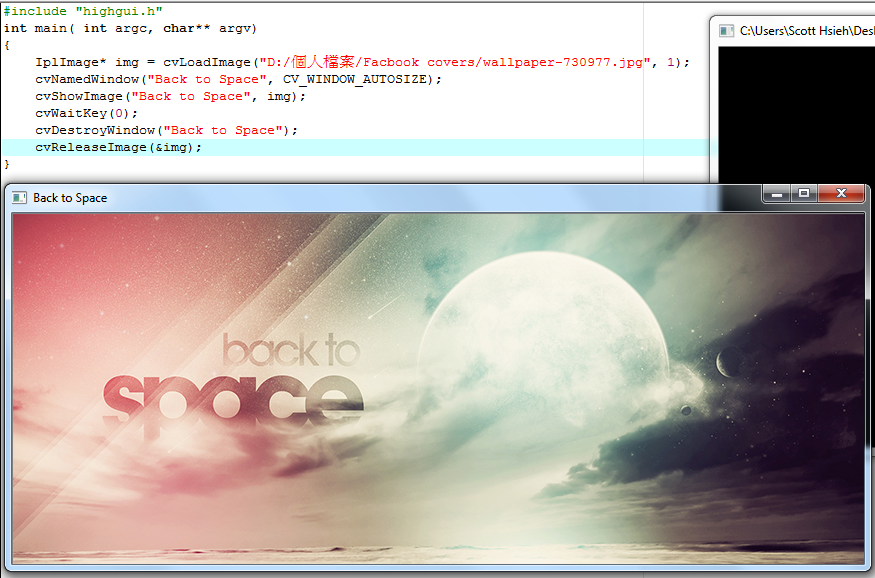

cvNamedWindow( win, 1 );
storage = cvCreateMemStorage(0);
subdiv = init_delaunay( storage, rect );
printf("Delaunay triangulation will be build now interactively.\n"
"To stop the process, press any key\n\n");
for( i = 0; i < 200; i++ )
{
CvPoint2D32f fp = cvPoint2D32f( (float)(rand()%(rect.width-10)+5),
(float)(rand()%(rect.height-10)+5));
locate_point( subdiv, fp, img, active_facet_color );
cvShowImage( win, img );
if( cvWaitKey( 100 ) >= 0 )
break;
cvSubdivDelaunay2DInsert( subdiv, fp );
cvCalcSubdivVoronoi2D( subdiv );
cvSet( img, bkgnd_color, 0 );
draw_subdiv( img, subdiv, delaunay_color, voronoi_color );
cvShowImage( win, img );
if( cvWaitKey( 100 ) >= 0 )
break;
}
cvSet( img, bkgnd_color, 0 );
paint_voronoi( subdiv, img );
cvShowImage( win, img );
cvWaitKey(0);
cvReleaseMemStorage( &storage );
cvReleaseImage(&img);
cvDestroyWindow( win );
}
int main( int argc, char** argv )
{
(void)argc; (void)argv;
help();
run();
return 0;
}
#ifdef _EiC
main( 1, "delaunay.c" );
#endif
|
